Integrated cast aluminium body stays rigid with no deformation or shifting

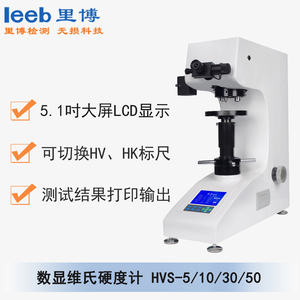

Multi Load Digital Vickers Hardness Tester Benchtop Vickers Hardness Testing Machine 5 10 30 50 kgf
Type: Vickers · Test Force: 0.3/0.5/1/2/3/5 kgf (HVS-5 model)
Product overview
The HVS-5/10/30/50 is a multi load digital Vickers hardness tester built on an integrated cast aluminium frame that resists deformation and shifting. A 5.1 inch large LCD with a menu-driven structure controls the automatic load, hold and unload cycle and allows the hardness scale to be switched between HV and HK. The D1 and D2 diagonals are entered through an encoder to reduce reading errors, and Rockwell, superficial Rockwell and Brinell conversion plus printer output make the machine ready for routine laboratory and workshop testing.
Key capabilities
LEEB HVS-5/10/30/50
5.1 inch large LCD switches hardness scale between HV and HK
Menu-driven structure keeps daily operation simple
High-definition optics and objectives with 20-step light brightness adjustment
D1 and D2 diagonals entered by encoder for accurate positioning
Results and data processing printed through the built-in printer
Technical specifications
15 Technical specifications
- Type
- Vickers
- Test Force
- 0.3/0.5/1/2/3/5 kgf (HVS-5 model)
- Measuring Range
- 8-2900 HV
- Scales
- HV or HK switchable
- Conversion Scales
- Rockwell, Superficial Rockwell, Brinell
- Min. Measuring Unit
- 0.0625 μm (20x objective), 0.125 μm (10x objective)
- Dwell Time
- 5-60 s adjustable
- Total Magnification
- Observation and measurement 100X, Measurement 200X
- Data Output
- Built-in printer
- Loading Control
- Automatic (load, hold, unload)
- Max. Specimen Height
- 165 mm
- Throat Depth
- 130 mm
- Optional
- XY stage, CCD measuring system, Knoop indenter, fine wire clamping jig
- Instrument Weight
- Approx. 45 kg
- Power Supply
- AC220V±5%, 50~60Hz
