Wide-angle imaging for building inspections
Verified product information
Thermal imager with 42° wide-angle lens
320 × 240 IR pixels · SuperResolution 640 × 480 · NETD <40 mK · manual focus
Product overview
320 × 240 IR pixels · SuperResolution 640 × 480 · NETD <40 mK · manual focus
This is order 0560 8836 with the wide-angle lens. The two-lens kit is a different order, 0563 8836. Regional radio and frame-rate configurations must be confirmed for the destination market.
Key capabilities

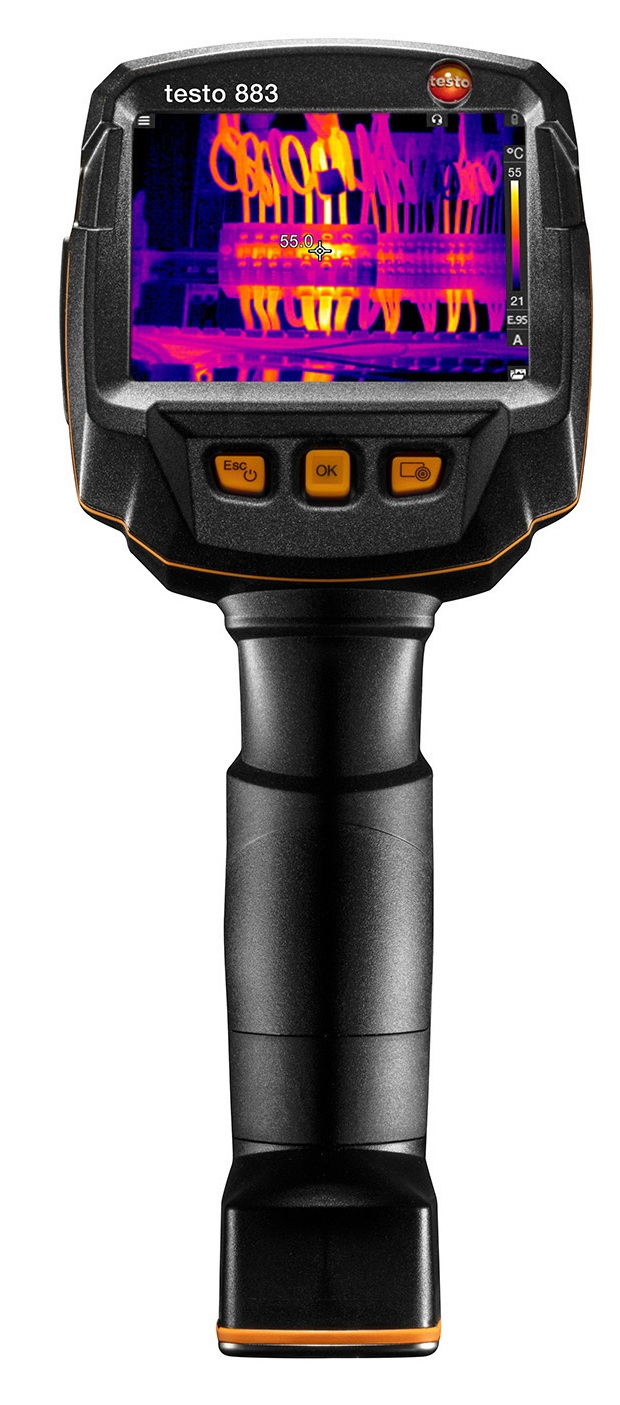

testo 883-2
Manual focus from 0.1 m with the wide-angle lens
IRSoft analysis and reporting software
Technical specifications
8 Technical specifications
Checked against the manufacturer's official product page · 2026-10-10
- Order number / 订货号
- 0560 8836
- Native IR resolution / 原生红外分辨率
- 320 × 240 pixels
- SuperResolution / 超像素
- 640 × 480 pixels
- Thermal sensitivity / 热灵敏度
- <40 mK
- Included lens field of view / 随附镜头视场
- 42° × 32°
- Focus / 对焦
- Manual / 手动
- Minimum focus distance / 最小聚焦距离
- 0.1 m (wide-angle lens / 广角镜头)
- Spectral range / 光谱范围
- 7.5 to 14 µm
