Product overview
The Testo 862-2 is a pocket-sized thermal imager with 256 x 192 pixel infrared resolution, a 56 x 42 degree field of view and thermal sensitivity below 50 mK. It is intended for electrical inspection, building diagnostics and preventive maintenance where a compact, drop-tested IP54 instrument is needed on site.
Key capabilities
testo 862-2
High thermal sensitivity: detects differences below 50 mK, suitable for finding insulation defects, moisture and overheating components.

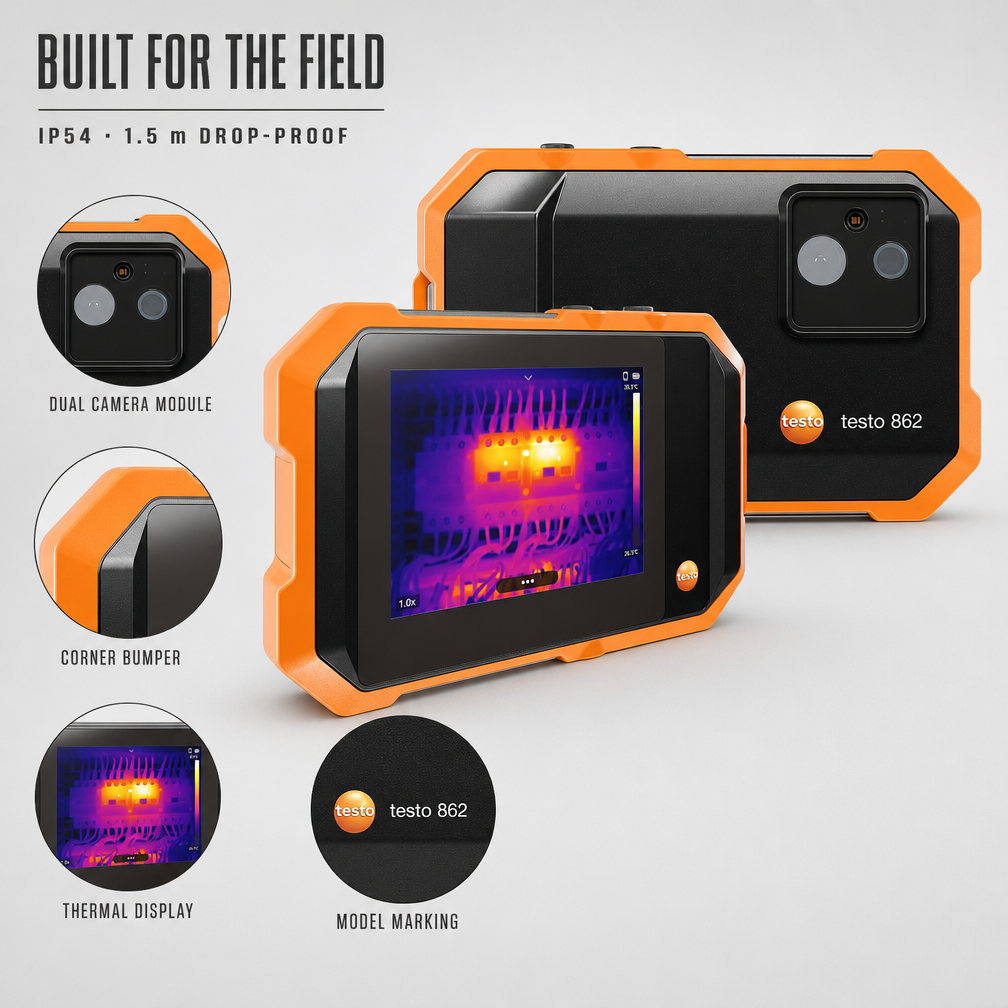

Pocket-sized and rugged: IP54 rated with a 1.5 m drop test, designed for one-handed inspection work on site.
Technical specifications
10 Technical specifications
- IR resolution
- 256 x 192 px
- field of view
- 56 x 42 deg
- thermal sensitivity
- <50 mK
- IFOV
- 3.75 mrad
- Protection class
- IP54
- Equipment
- 1.5 m drop tested
- Equipment
- 2 MP visual camera with Fusion
- Image frequency
- 9/25 Hz
- Spectral range
- 8-14 um
- Visual resolution
- 2 MP
