5.1-inch LCD Menu Display
Digital Rockwell Hardness Tester 5.1 inch LCD Menu 12 Scales with Printing Output
Type: Digital Rockwell · Initial Test Force: 10kgf (98.07N)
Product overview

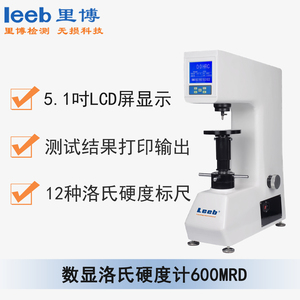

The 600MRD is a digital Rockwell hardness tester with an integrated cast iron body and a 5.1-inch LCD display using a menu-based interface. Twelve Rockwell scales can be selected, and multiple hardness conversion functions are provided for HRA, HRB, HRC, HRD, HRF, HV, HK, HBW and superficial scales. Test results are printed through the built-in output, and an optional plastic accessory set allows plastic hardness testing. A high-precision displacement sensor gives 0.1HR resolution, with max specimen height 190mm and accuracy conforming to GB/T230.2, ISO6508-2, ASTM E18 and JJG112.
Key capabilities
LEEB 600MRD
12 Rockwell Scales Selection
Multiple Hardness Conversion Functions
0.1HR Resolution
Built-in Printing Output
Optional Plastic Hardness Accessories
Technical specifications
17 Technical specifications
- Type
- Digital Rockwell
- Initial Test Force
- 10kgf (98.07N)
- Test Force
- 60kgf (588N) / 100kgf (980N) / 150kgf (1471N)
- Rockwell Scales
- HRA, HRB, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW, HRL, HRM, HRR
- Conversion Scales
- HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
- Indenter
- Diamond Cone Rockwell Indenter, 1.5875mm Steel Ball Indenter
- Hardness Range
- HRA 20-95, HRBW 10-100, HRC 20-70, HRD 40-77, HREW 70-100, HRFW 60-100, HRGW 30-94, HRHW 80-100, HRKW 40-100, HRL 50-115, HRM 50-115, HRR 50-115
- Resolution
- 0.1HR
- Dwell Time
- 2-60s
- Display
- LCD Screen
- Max Specimen Height
- 190mm
- Throat Depth
- 165mm
- Dimensions
- 520x240x700mm
- Weight
- Approx. 80kg
- Power Supply
- AC220V +5%, 50-60Hz
- Data Output
- Printer
- Standard
- GB/T230.2, ISO6508-2, ASTM E18, JJG112
