7 inch touch screen with icon menu display

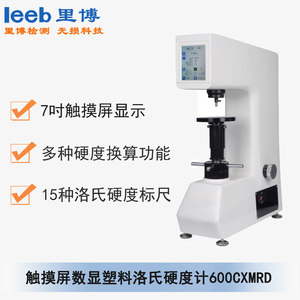

Touch Screen Digital Plastic Rockwell Hardness Tester for Plastics and Composite Materials with 15 Rockwell Scales
Type: Digital Plastic Rockwell · Initial Test Force: 10kgf (98.07N)
Product overview
The 600CXMRD is a touch screen digital plastic Rockwell hardness tester built for plastics, composites, friction materials and soft metals. A one piece cast frame keeps the machine rigid without deformation or displacement, and the weight loaded structure provides a stable, repeatable test force. The 7 inch touch screen offers 15 Rockwell scales and 12 measuring ranges covering HRA, HRB, HRC, HRD, HRL, HRM and HRR, with 3.175mm, 6.35mm and 12.7mm ball indenters supplied as standard. Test data can be transferred straight to a USB drive, and the instrument is widely used for plastics, hard rubber, friction materials, synthetic resin, aluminium tin alloy and hard board.
Key capabilities
LEEB 600CXMRD
Designed for plastics, composites and soft metals
Three ball indenters 1/8, 1/4 and 1/2 inch
Results exported directly to USB drive
Wide testing ranges for 12 Rockwell scales
Technical specifications
16 Technical specifications
- Type
- Digital Plastic Rockwell
- Initial Test Force
- 10kgf (98.07N)
- Test Force
- 60kgf (588N), 100kgf (980N), 150kgf (1471N)
- Rockwell Scales
- HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
- Indenter
- 3.175mm (1/8 inch), 6.35mm (1/4 inch), 12.7mm (1/2 inch) ball indenters
- Testing Range
- HRA 20-95, HRBW 10-100, HRC 20-70, HRD 40-77, HREW 70-100, HRFW 60-100, HRGW 30-94, HRHW 80-100, HRKW 40-100, HRL 50-115, HRM 50-115, HRR 50-115
- Hardness Resolution
- 0.1HR
- Dwell Time
- 2-60s
- Conversion Standards
- GB, ISO, ASTM
- Display
- Touch screen
- Max Specimen Height
- 190mm
- Indenter to Inner Wall
- 165mm
- Dimensions
- 520 x 240 x 700mm
- Net Weight
- approx. 80kg
- Power
- AC220V +5%, 50/60Hz
- Data Output
- USB
