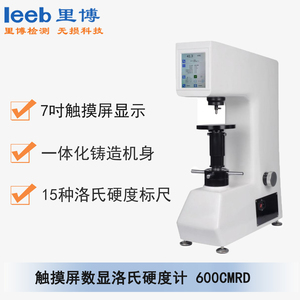

MODEL / LEEB 600CMRD

Touch Screen Digital Rockwell Hardness Tester with 15 Rockwell Scales and USB Data Output for Hardened Steel

Type: Digital Rockwell · Initial Test Force: 10kgf (98.07N)

Product overview

The 600CMRD is a touch screen digital Rockwell hardness tester designed for fast and repeatable hardness testing in workshops and laboratories. Its one piece cast body stays rigid without deformation or displacement, and the weight loaded structure keeps the test force stable and the readings accurate. A 7 inch high sensitivity touch screen with icon menus gives access to 15 Rockwell scales from HRA to HRV, and test results can be exported directly to a USB drive. Multi standard hardness conversion covers Brinell, Vickers, Leeb and tensile strength, making the machine suitable for hardened steel, tempered and annealed steel, cold hard castings, malleable castings, aluminium, copper and bearing steel.

Key capabilities

LEEB 600CMRD

01

7 inch high sensitivity touch screen with icon menu

02

15 Rockwell scales from HRA to HRV for many materials

03

Weight loaded structure for stable and repeatable results

04

Test results output directly to USB drive

05

High precision displacement sensor with hardness conversion

Technical specifications

14 Technical specifications

Type
Digital Rockwell
Initial Test Force
10kgf (98.07N)
Test Force
60kgf (588N), 100kgf (980N), 150kgf (1471N)
Rockwell Scales
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Indenter
Diamond Rockwell indenter, 1.5875mm tungsten carbide ball indenter
Hardness Resolution
0.1HR
Dwell Time
2-60s
Display
Touch screen
Max Specimen Height
190mm
Indenter to Inner Wall
165mm
Dimensions
520 x 240 x 700mm
Net Weight
approx. 80kg
Power
AC220V +5%, 50/60Hz
Data Output
USB
