Manual Analog Rockwell Hardness Tester Cast Iron Frame Dial Reading for Bearing Steel Testing
Type: Manual Rockwell · Initial Test Force: 10kgf (98.07N)
Product overview

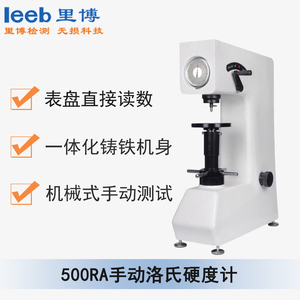

The 500RA is a manual Rockwell hardness tester built on an integrated cast iron frame that resists deformation and displacement. It uses a weight-loaded structure for stable performance and high measuring accuracy, with readings taken directly from the analog dial at 0.5HR resolution. A precision hydraulic buffer provides smooth, adjustable loading speed. The machine covers nine Rockwell scales from HRA to HRK for quenched, tempered and annealed steel, castings, aluminum alloy, copper and bearing steel, and its accuracy conforms to GB/T230.2 and ASTM E18.
Key capabilities
LEEB 500RA
Integrated Cast Iron Frame
Precision Hydraulic Buffer, Smooth Loading
0.5HR Resolution Dial
Nine Rockwell Scales HRA to HRK
Max Specimen Height 180mm
Technical specifications
12 Technical specifications
- Type
- Manual Rockwell
- Initial Test Force
- 10kgf (98.07N)
- Test Force
- 60kgf (588N) / 100kgf (980N) / 150kgf (1471N)
- Rockwell Scales
- HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK
- Resolution
- 0.5HR
- Display
- Analog Dial Direct Reading
- Operation
- Manual
- Max Specimen Height
- 180mm
- Throat Depth
- 160mm
- Dimensions
- 520x240x700mm
- Net Weight
- Approx. 50kg
- Standard
- GB/T230.2, ASTM E18
