Motorized Loading, Holding and Release

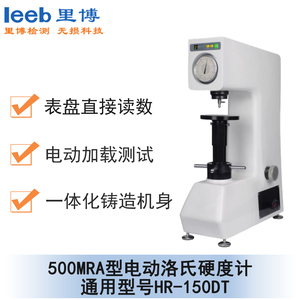

Motorized Rockwell Hardness Tester Automatic Load and Release Analog Dial Reading
Type: Motorized Rockwell · Initial Test Force: 10kg (98.07N)
Product overview
The 500MRA is a motorized Rockwell hardness tester in which applying, holding and releasing the test force are completed automatically, eliminating manual operation errors. Hardness is read directly from the analog dial at 0.5HR resolution, and dwell time is adjustable from 2 to 60 seconds. The integrated cast iron structure is rigid and stable for repeatable results. It tests black and non-ferrous metals such as quenched, tempered and annealed steel, cold-hardened castings, malleable castings, aluminum alloy, copper and bearing steel, and conforms to GB/T230.2, ISO6508-2 and ASTM E18.
Key capabilities
LEEB 500MRA
Eliminates Manual Operation Error
Analog Dial Direct Reading
0.5HR Resolution
Dwell Time 2-60s Adjustable
Rigid Cast Iron Structure
Technical specifications
13 Technical specifications
- Type
- Motorized Rockwell
- Initial Test Force
- 10kg (98.07N)
- Test Force
- 60kg (588N) / 100kg (980N) / 150kg (1471N)
- Rockwell Scales
- HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK
- Hardness Reading
- Analog Dial
- Resolution
- 0.5HR
- Dwell Time
- 2-60s
- Max Specimen Height
- 170mm
- Indenter Center to Wall Distance
- 165mm
- Dimensions
- 520x240x700mm
- Weight
- 80kg
- Power Supply
- AC220V +5%, 50-60Hz
- Standard
- GB/T230.2, ISO6508-2, ASTM E18
