Touchscreen automatic micro Vickers testing system

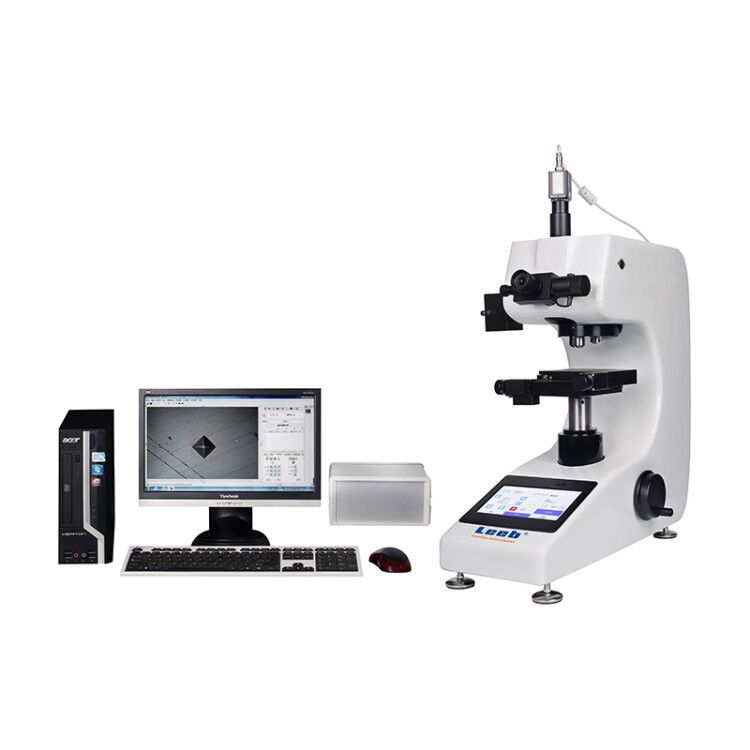

Touchscreen Automatic Micro Vickers Hardness Tester with Motorized XY Stage and High Precision Positioning
Type: Automatic Micro Vickers Hardness Tester · Control: Touchscreen Automatic System
Product overview
The 402MVMS-Y-XY is a touchscreen automatic micro Vickers hardness testing system with a motorized XY stage and automatic turret. The motorized XY platform and high precision positioning support automatic indentation sequences for case depth and hardness gradient measurement. It supports PC communication and USB/EXCEL data export, and a CCD measurement option is available. Typical applications include carburized case depth, coating hardness and welding heat affected zones. Detailed mechanical specifications are available on request.
Key capabilities
LEEB 402MVMS-Y-XY
Motorized XY stage supports automatic indentation mapping
Automatic turret with automatic test process
High precision positioning for case depth measurement
PC communication and USB data export supported
Effective for hardened case and coating analysis
Technical specifications
15 Technical specifications
- Type
- Automatic Micro Vickers Hardness Tester
- Control
- Touchscreen Automatic System
- Stage
- Motorized XY Stage
- Positioning
- Automatic High Precision
- Turret
- Automatic
- Hardness Scale
- HV / HK (switchable)
- Min. Measuring Unit
- 0.03125 μm
- Data Output
- USB one-key export, EXCEL report
- PC Communication
- Supported
- Test Force
- On request
- Measuring Range
- On request
- Max Specimen Height
- On request
- Dimensions
- On request
- Weight
- On request
- Power Supply
- AC220V±5%, 50-60 Hz
