Automatic turret micro Vickers tester

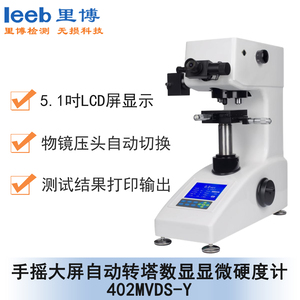

Large-Screen Automatic Turret Digital Micro Vickers Hardness Tester with Hand-Wheel Stage
Type: Digital Micro Vickers Hardness Tester · Turret: Automatic
Product overview
The 402MVDS-Y is a digital micro Vickers hardness tester with an automatic turret and a 5.1 inch LCD display. The automatic test process reduces operator steps, and the built-in thermal printer delivers test reports directly. It offers HV and HK switchable scales, 20-level adjustable light and 0.03125 μm resolution. The hand-wheel lifting stage suits small parts, thin plates and coating specimens. It is ideal for hardened layer and heat treatment inspection.
Key capabilities
LEEB 402MVDS-Y
5.1 inch LCD with menu operation
Automatic test process reduces operator errors
Built-in thermal printer output
20-level adjustable light with HV HK scales
0.03125 μm unit, hand-wheel stage
Technical specifications
20 Technical specifications
- Type
- Digital Micro Vickers Hardness Tester
- Turret
- Automatic
- Display
- 5.1 inch LCD with menu
- Hardness Scale
- HV / HK (switchable)
- Light
- 20-Level Adjustable
- Min. Measuring Unit
- 0.03125 μm
- Data Output
- Built-in thermal printer
- Objective
- 100X observation / 400X measurement
- Loading
- Automatic
- Dwell Time
- 5-60 s
- Test Force
- 10 / 25 / 50 / 100 / 200 / 300 / 500 / 1000 gf
- Measuring Range
- 0-3000 HV
- Stage
- Hand-wheel turbo-worm lifting stage
- XY Stage
- 100 x 100 mm, travel 25 x 25 mm, 0.01 mm
- Max Specimen Height
- 90 mm
- Throat Depth
- 120 mm
- Dimensions
- 405 x 290 x 480 mm
- Weight
- ~40 kg
- Power Supply
- AC220V±5%, 50-60 Hz
- Standards
- GB/T4340.1, GB/T4340.2, ISO 6507-2:2018, ASTM E384, JJG151
