Touchscreen Automatic Turret Micro Vickers Hardness Tester with USB Data Export and PC Control
Type: Digital Micro Vickers Hardness Tester · Display: 7 inch Color Touchscreen
Product overview

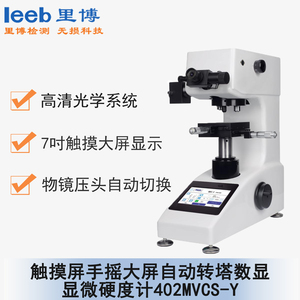

The 402MVCS-Y is a touchscreen digital micro Vickers hardness tester with an automatic turret and large-screen control console. A 7 inch color touchscreen provides menu operation, and test data can be exported with one key through USB as an EXCEL report. The instrument supports PC communication and control, and optional RS232 and motorized XY stage are available. HV and HK scales with 10-level adjustable light cover microhardness testing of hardened cases, coatings and metallographic specimens. Resolution is 0.03125 μm.
Key capabilities
LEEB 402MVCS-Y
Automatic turret with automatic test process
USB one-key data export to EXCEL report
PC communication and control supported
HV HK scales with 10-level adjustable light
Optional motorized XY stage and RS232
Technical specifications
20 Technical specifications
- Type
- Digital Micro Vickers Hardness Tester
- Display
- 7 inch Color Touchscreen
- Turret
- Automatic
- Hardness Scale
- HV / HK (switchable)
- Light
- 10-Level Adjustable
- Min. Measuring Unit
- 0.03125 μm
- Data Output
- USB one-key export, EXCEL report
- PC Communication
- Supported
- Conversion Scales
- GB / ISO / ASTM
- Objective
- 100X observation / 400X measurement
- Loading
- Automatic
- Dwell Time
- 5-60 s
- Test Force
- 10 / 25 / 50 / 100 / 200 / 300 / 500 / 1000 gf
- Measuring Range
- 0-3000 HV
- Max Specimen Height
- 90 mm
- Throat Depth
- 120 mm
- Dimensions
- 405 x 290 x 480 mm
- Weight
- ~40 kg
- Power Supply
- AC220V±5%, 50-60 Hz
- Standards
- GB/T4340.1, GB/T4340.2, ISO 6507-2:2018, ASTM E384, JJG151
