Four independent channels: connects up to 4 type K/J thermocouples at once, replacing four separate loggers for multi-point temperature monitoring.
Four-channel temperature data logger
Four independent channels: connects up to 4 type K/J thermocouples at once, replacing four separate loggers for multi-point temperature monitoring.
Product overview

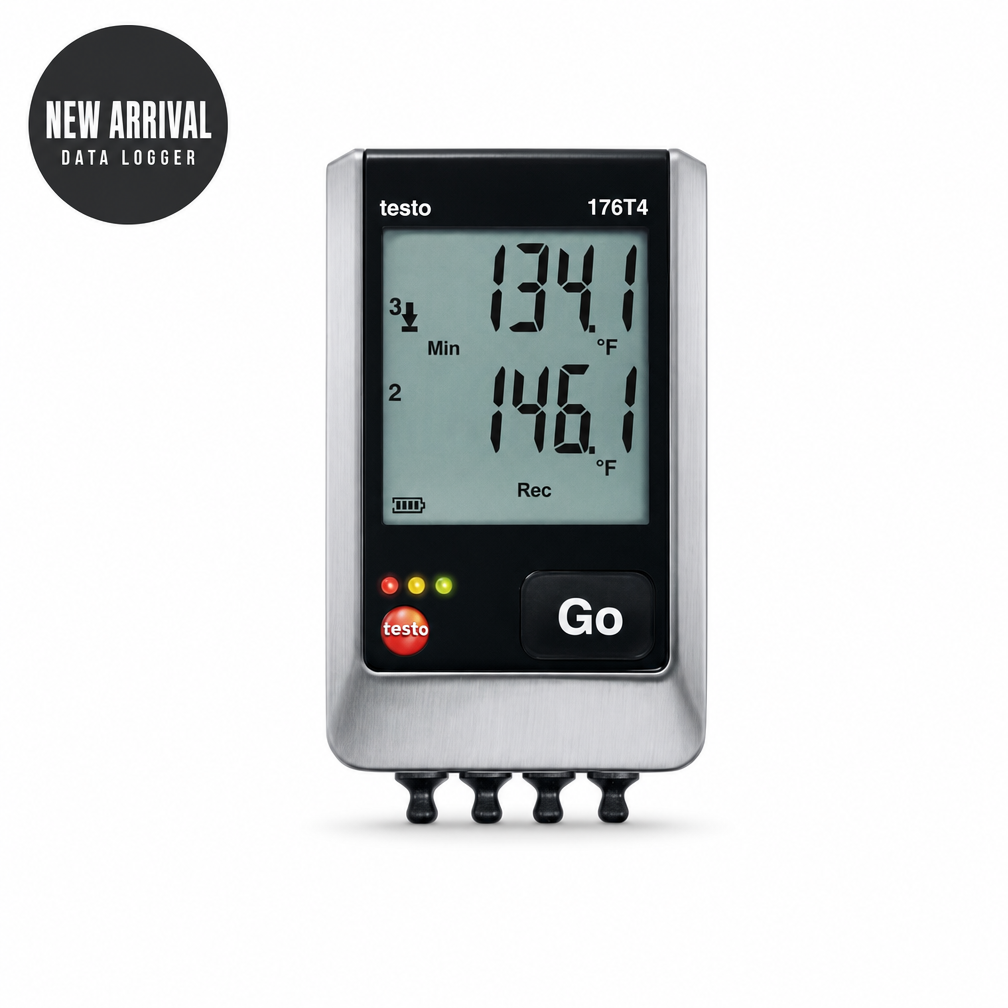

The Testo 176T4 is a four-channel temperature data logger for type K, J and T thermocouples. It records up to four measurement points simultaneously and stores up to 2 million readings in its internal memory, making it suitable for industrial process monitoring, cold chain documentation and long-term unattended temperature logging. The IP54-rated housing carries an on-device LCD display and data is transferred to a PC over USB for evaluation.
Key capabilities
testo 176T4
Large internal memory: stores up to 2 million readings, enough for long unattended monitoring runs.

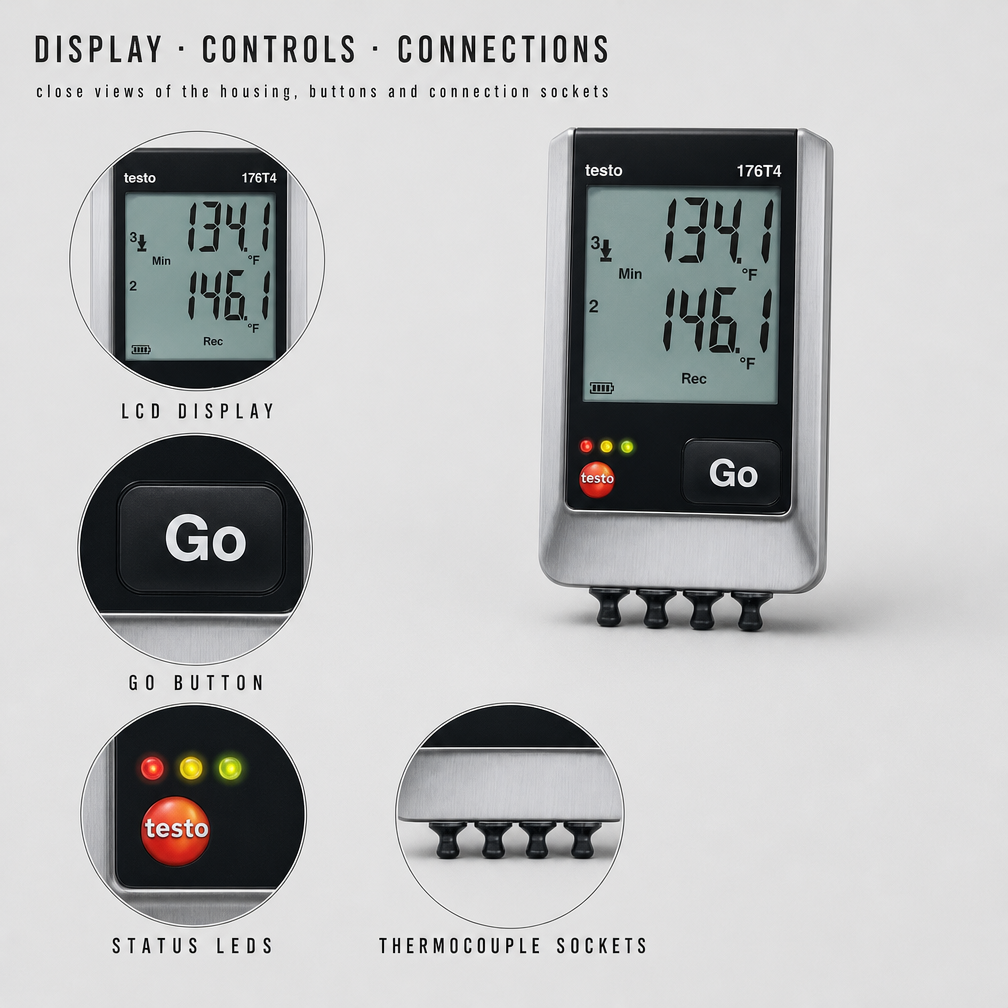

Industrial protection: IP54 rated housing with an on-device LCD display and USB data transfer via the supplied software.
Technical specifications
11 Technical specifications
- Inputs
- 4 thermocouple inputs
- Type K
- -200...+1000 C
- Type T
- -200...+400 C
- Type J
- -100...+750 C
- Display
- backlit display
- Protection class
- IP54
- Connectivity
- USB, optional SD card
- Channels
- 4
- Thermocouple type
- K, J, T
- Readings memory
- 2,000,000
- Interface
- USB
Related products

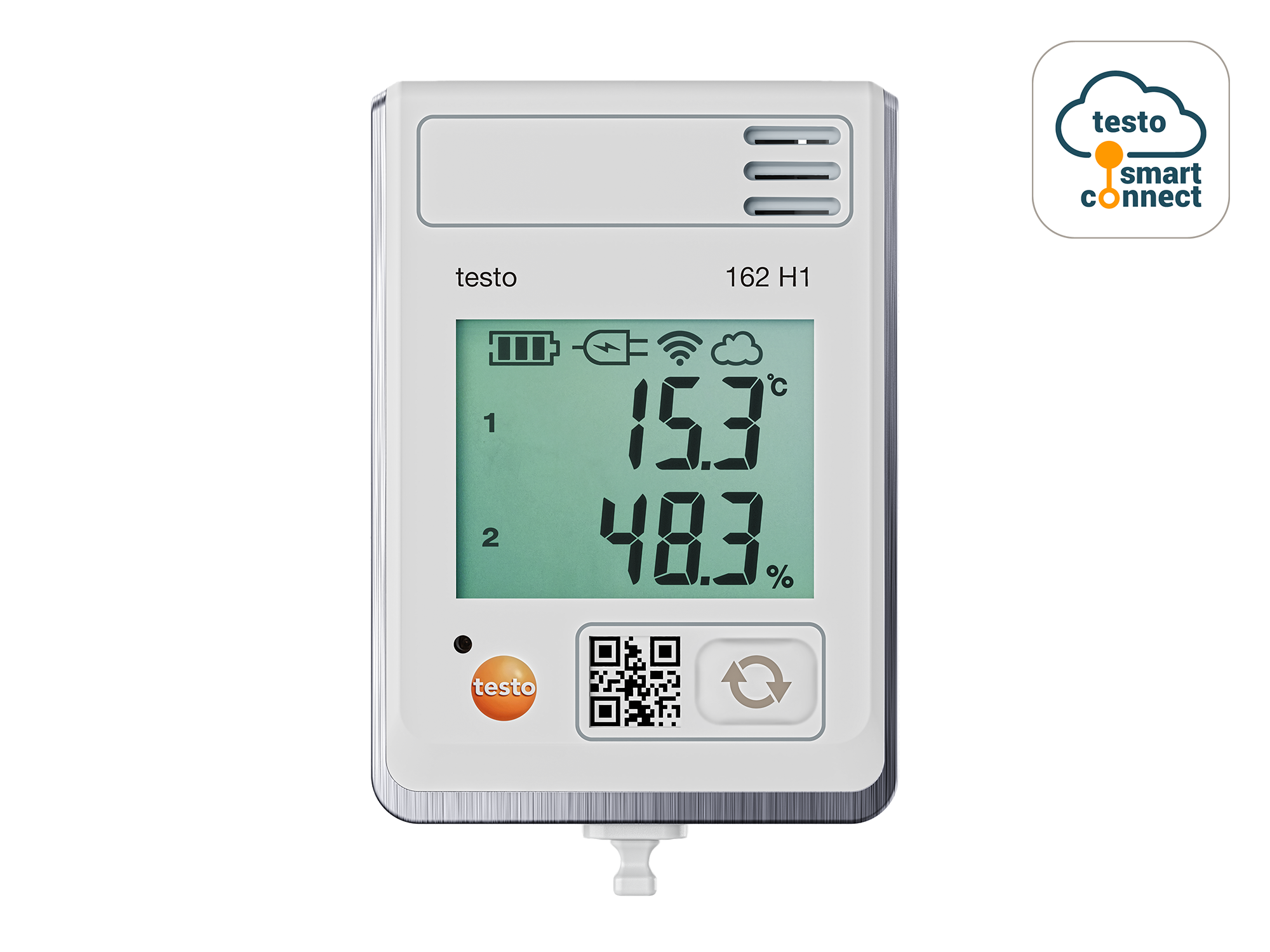

Online data logger with display and integrated temperature and humidity sensor
View product details ↗

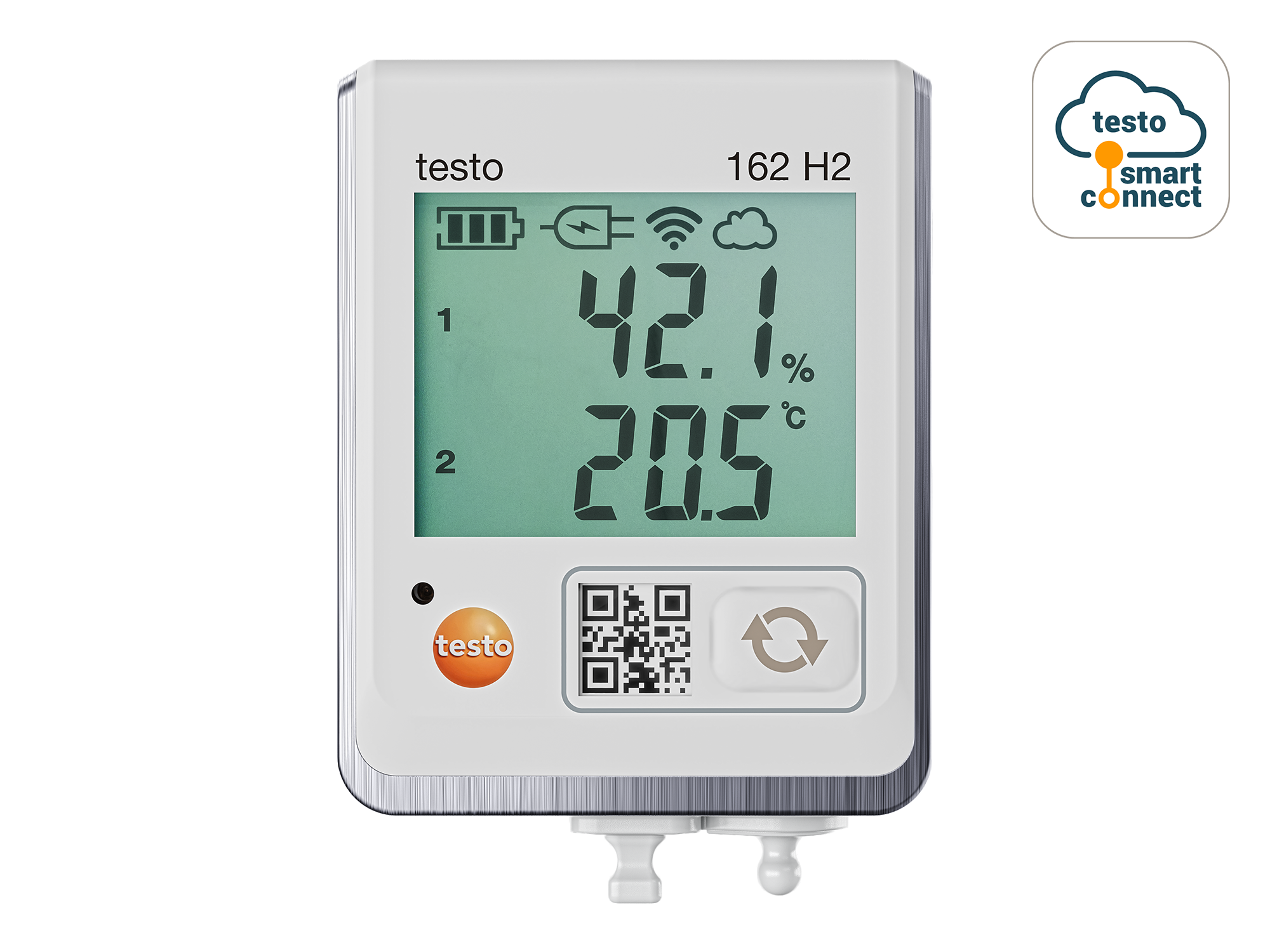

Online data logger with display and connections for temperature and humidity probes
View product details ↗

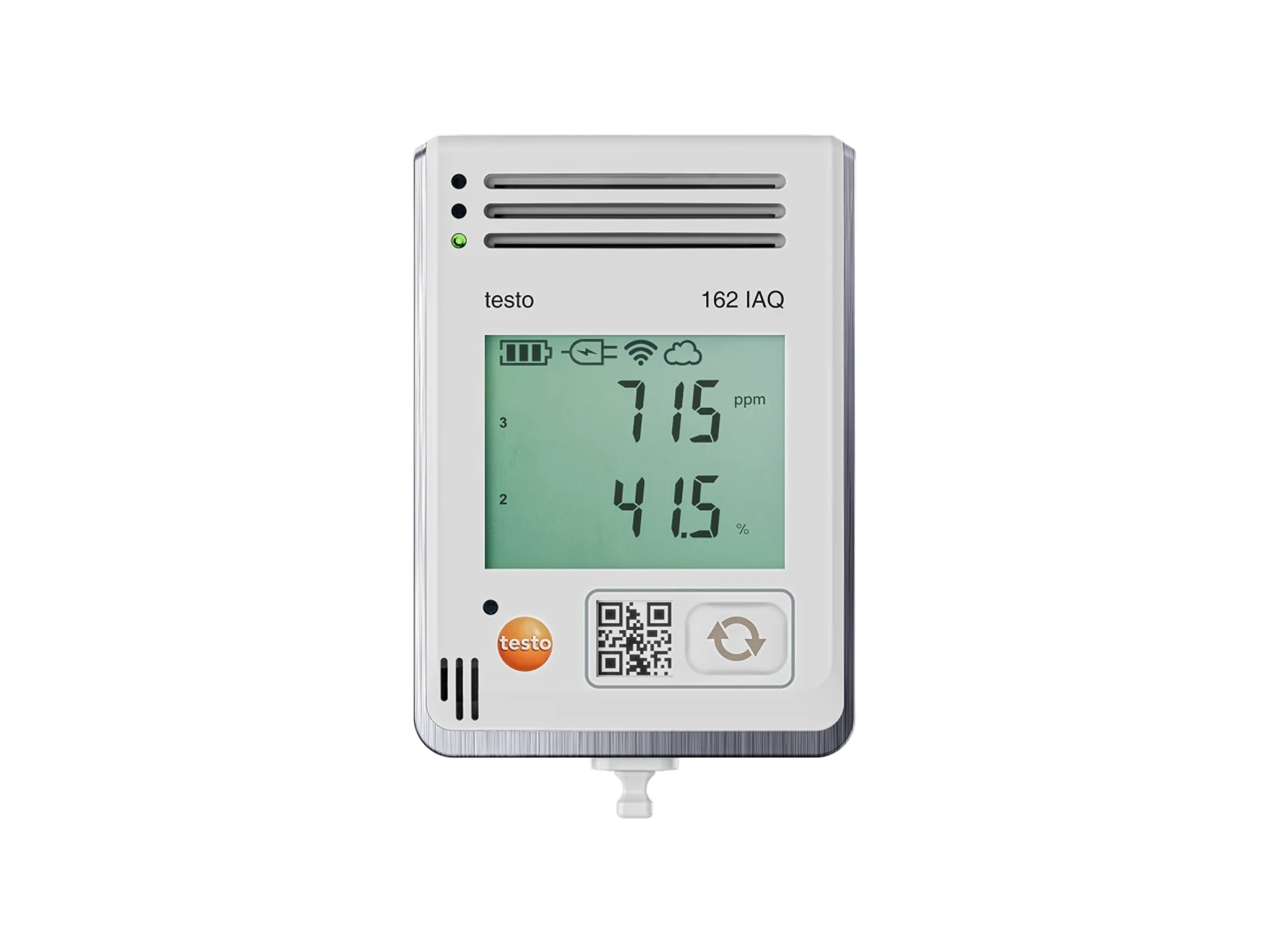

Online data logger with display and integrated sensors for temperature, humidity, CO2 and atmospheric pressure
