Magnetic Induction (Fe)
Coating Thickness Gauge Magnetic Separate Probe 0-1250um 1560 Data Storage
Principle: Magnetic Induction (Fe) · Range: 0-1250μm
Product overview

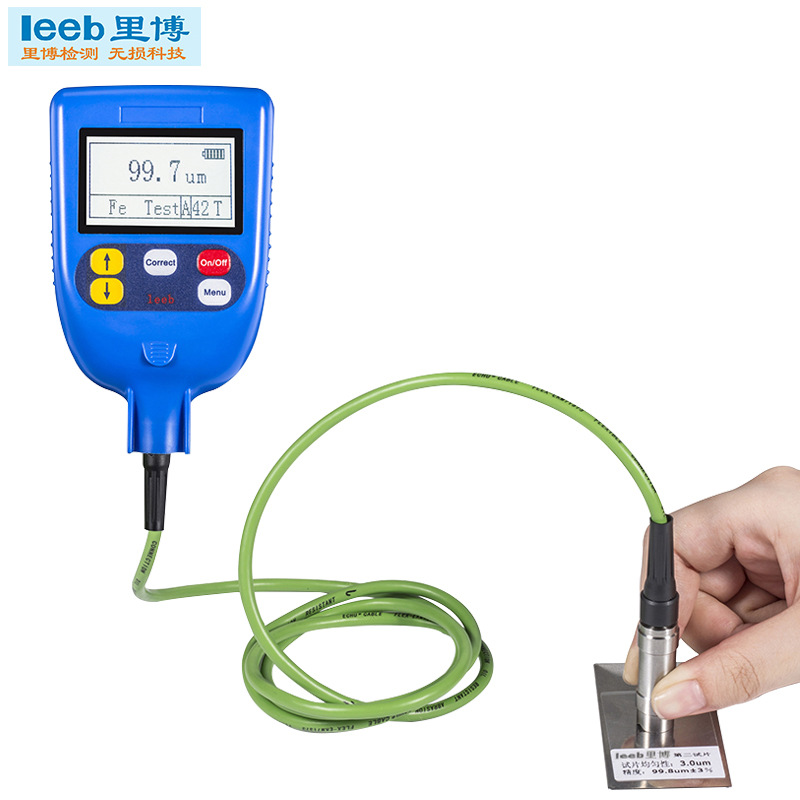

The leeb260 magnetic induction coating thickness gauge uses a separate probe for accessing tight and curved measurement positions. Range 0-1250μm, accuracy ±(3%H+1)μm, 0.1μm resolution and a large 1560-value data storage for efficient field inspection.
Key capabilities
leeb260
Separate Probe for Tight & Curved Surfaces
Range 0-1250μm
Accuracy +/- (3%H+1)μm
0.1μm Resolution
1560 Values Data Storage
Big Display
Portable Handheld Design
Technical specifications
7 Technical specifications
- Principle
- Magnetic Induction (Fe)
- Range
- 0-1250μm
- Accuracy
- ±(3%H+1)μm
- Resolution
- 0.1μm
- Probe
- Separate
- Storage
- 1560 values
- Substrate
- Ferrous (Fe)
