Dual Principle - Magnetic + Eddy Current
Coating Thickness Gauge Dual Principle Fe NFe Magnetic Eddy Current 0-1250um Paint Tester
Principle: Dual (Magnetic F + Eddy Current N) · Range: 0-1250μm
Product overview

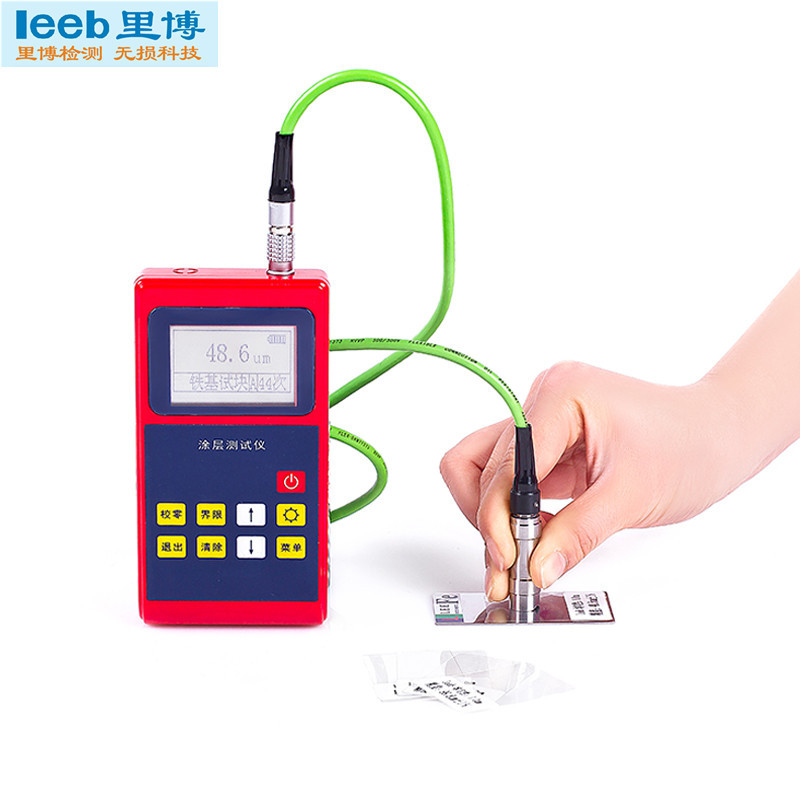

The leeb222 combines magnetic induction and eddy current principles in one instrument, automatically recognizing ferrous and non-ferrous substrates. Range 0-1250μm with ±(3%H+1)μm accuracy and 0.1μm resolution — one gauge covers both steel and aluminum coating inspection needs.
Key capabilities
leeb222
Auto Recognition of Ferrous & Non-Ferrous Substrates
Range 0-1250μm
Accuracy +/- (3%H+1)μm
0.1μm Resolution
One Meter for Two Uses
High Precision
Portable Handheld
Technical specifications
6 Technical specifications
- Principle
- Dual (Magnetic F + Eddy Current N)
- Range
- 0-1250μm
- Accuracy
- ±(3%H+1)μm
- Resolution
- 0.1μm
- Substrates
- Ferrous & Non-Ferrous
- Probe
- Integrated dual
