Large Color Screen — Clear Reading & Easy Operation
Portable Leeb Hardness Tester Color Screen Built-in Printer 7 Impact Devices 200h
Range: 100-990 HLD · Accuracy: ±6 HLD / Repeatability 6 HLD (HLD=760)
Product overview

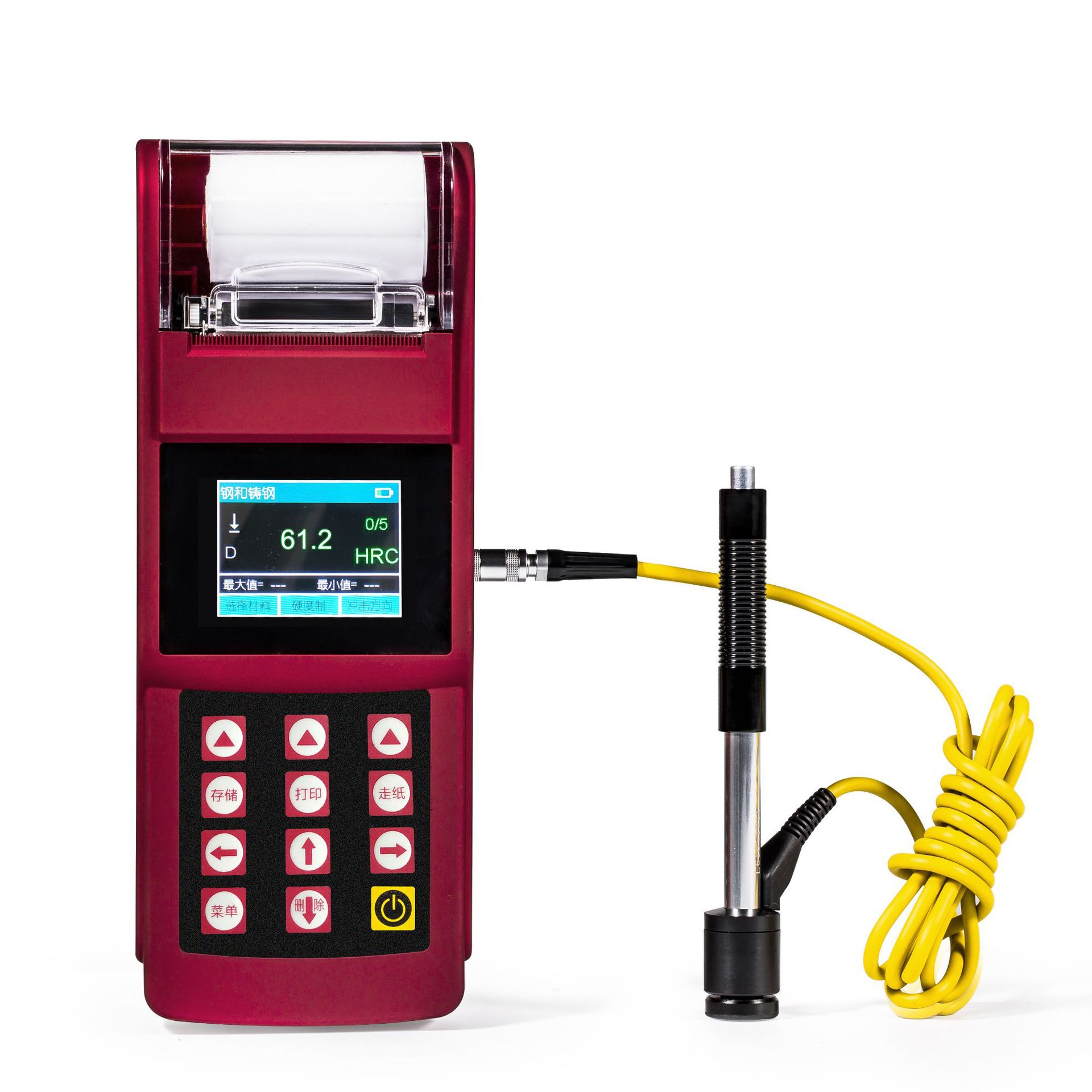

Color-screen portable Leeb hardness tester with integrated thermal printer. The large color display makes reading and operation intuitive, while the industrial housing resists shock, vibration and EMI. 7 auto-recognized impact devices, 100-990 HLD range, ±6 HLD accuracy, 6 scales, 600-group storage and 200h battery life deliver professional on-site hardness testing with printable reports.
Key capabilities
leeb160C
Built-in Thermal Printer for On-Site Reports
7 Impact Devices Auto-Recognized No Re-Calibration
100-990 HLD Range ±6 HLD Accuracy
6 Hardness Scales HL HB HRC HRB HV HS
360° Direction & 600 Groups Storage
200h Continuous Work Li-ion Battery
Industrial Design Shock & EMI Resistant
Technical specifications
14 Technical specifications
- Range
- 100-990 HLD
- Accuracy
- ±6 HLD / Repeatability 6 HLD (HLD=760)
- Impact Devices
- D G C DL DC D+15 DS
- Socket
- LEMO socket
- Scales
- HL HB HRC HRB HV HS
- Direction
- 360°
- Storage
- 600 groups
- Display
- Large color screen
- Printer
- Built-in thermal
- Alarm
- Max/min limit
- Power
- Li-ion 9V/1800mA, 200h work
- Size
- 230x86x46mm
- Weight
- 400g
- Package
- Main unit, D impact device, support ring, standard test block, nylon brush, charger, printer paper
